CMCP261-01 STI Vibration Monitoring Inc Vietnam

1. Giới thiệu CMCP261-01 STI Vibration Monitoring Vietnam

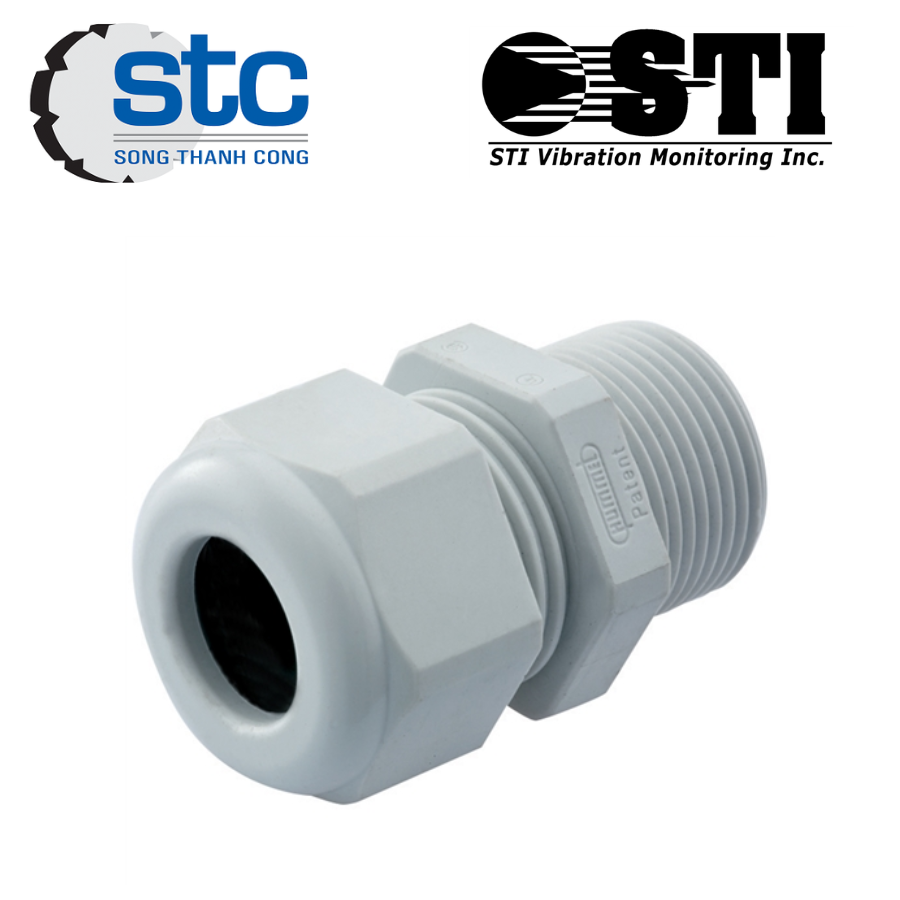

CMCP261-01 STI Vibration Monitoring Vietnam là đầu nối chống nước chuyên dụng cho hệ thống giám sát rung động. Thiết bị được thiết kế để bảo vệ cáp cảm biến trong môi trường công nghiệp. Sản phẩm giúp tạo độ kín và giảm tác động cơ học lên dây cáp. CMCP261-01 thường được sử dụng cùng hộp đấu nối và cảm biến rung STI. Thiết bị có độ bền cao và khả năng chống chịu môi trường khắc nghiệt. CMCP261-01 STI Vibration Monitoring Vietnam góp phần nâng cao độ tin cậy của hệ thống giám sát tình trạng máy móc.

2. Đặc trưng CMCP261-01 STI Vibration Monitoring Vietnam

• Thiết kế dạng đầu nối chống nước và chống kéo căng cáp.
• Hỗ trợ một đầu cáp đi vào thiết bị.
• Cung cấp khả năng làm kín môi trường hiệu quả.
• Bảo vệ cáp khỏi rung động và lực kéo cơ học.
• Vật liệu Polyamide bền bỉ và chống ăn mòn.
• Chịu được môi trường công nghiệp khắc nghiệt.
• Áp suất làm việc tối đa 150 PSIG.
• CMCP261-01 STI Vibration Monitoring Vietnam dễ dàng lắp đặt và bảo trì.

3. Thông số kỹ thuật CMCP261-01 STI Vibration Monitoring Vietnam

• Model: CMCP261-01 STI Vibration Monitoring Vietnam.
• Loại thiết bị: Liquid Tight Strain Relief Connector.
• Vật liệu: Polyamide.
• Dải đường kính cáp: 1.5 mm đến 5 mm.
• Kiểu ren: PG7.
• Đường kính lỗ lắp đặt: 12.5 mm.
• Chiều dài thân: 32 mm.
• Chiều dài ren: 8 mm.
• Nhiệt độ hoạt động: -60°C đến +100°C.
• Áp suất làm việc: 150 PSIG.
• Chức năng: Chống nước và giảm lực kéo cáp.
• CMCP261-01 STI Vibration Monitoring Vietnam đáp ứng yêu cầu vận hành liên tục trong công nghiệp.

4. Ứng dụng CMCP261-01 STI Vibration Monitoring Vietnam

• Hệ thống giám sát rung động máy quay.
• Nhà máy điện và trạm phát điện.
• Hệ thống quạt công nghiệp và máy thổi khí.
• Máy nén khí công nghiệp.
• Hệ thống bơm và động cơ công nghiệp.
• Nhà máy xi măng, dầu khí và hóa chất.
• Hộp đấu nối tín hiệu cảm biến rung động.
• CMCP261-01 STI Vibration Monitoring Vietnam giúp bảo vệ kết nối cáp và tăng độ ổn định tín hiệu.
