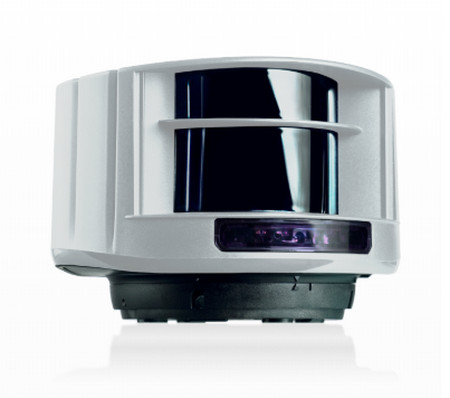

LZR®-P110 là giải pháp an toàn phổ quát cho các cửa trượt, xoay và xoay được thiết kế phù hợp với tiêu chuẩn DIN 18650 và EN 16005 và trường phát hiện tối đa 5 m x 5 m.

Technology

Laser scanner, time-of-flight measurement



Detection mode

Presence



Max. detection range

5.0 m × 5.0 m



Uncovered zone

5 - 25 cm (adjustable)



Remission factor

> 2 %



Angular resolution

0,3516 °



Min. detected object size (typ.)

2.1 cm @ 3 m ; 3.5 cm @ 5 m (in proportion to object distance)



Testbody

700 mm × 300 mm × 200 mm (Testbody CA according to EN16005/DIN18650)



Emission characteristics



IR Laser

Wavelength 905nm; max. output pulse power 75W (Class 1)



Red visible Laser

Wavelength 650nm; max. output CW power 3mW (Class 3R)



Supply voltage

10-35 V DC @ sensor side



Power consumption

< 5 W



Peak current at power-on

1.8 A (max. 80 ms @ 35 V)



Response time typ

20 ms; max. 80 ms (+ output activation delay)



Output

2 electronic relays (galvanic isolated - polarity free)



Max. switching voltage

35 V DC / 24 V AC



Max. switching current

80 mA (resistiv)



Input

2 optocouplers (galvanic isolated - polarity free)



Max. contact voltage

30 V DC (over-voltage protected)



Voltage threshold

Log. H: >8 V DC; Log. L: <3 V DC



Dimensions

125 mm (D) × 93 mm (W) × 70 mm (H) (Montagesockel + 14 mm)



Material

PC/ASA



Colour

Black or white



Rotation angles on bracket

-5 ° to +5 ° (lockable)



Tilt angles on bracket

-3 ° to +3 °



Protection degree

IP65



Temperature range

-30°C to +60°C if powered; -10°C to +60°C unpowered



Humidity

0-95% non-condensing



Vibrations

< 2 G



Expected lifetime

20 years



Norm conformity

EN 12978:2009; EN ISO 13849-1:2008 CAT2, Pl “d”; EN 60529:2001; IEC 60825-1:2007; EN 60950-1:2005; EN 61000-6-2:2005; EN 61000-6-3:2006; IEC 61496-1:2009; EN 61496-3:2008 ESPE Type 2; EN 62061:2005 SIL 2; EN 16005:2012 Chapter 4.6.8; DIN 18650-1:2010 Chapter 5.7.4; BS 7036-1:1996 Chapter 8.1
