Item

Materials name

Description

Part No.

Manufacturer




1

Trolley brush

081509-0843 with PE

100180988

Conductix Wampfler



2

Current collector

0815 1p 2x25A PE TOW, 50/14MM

081509-0142

Conductix Wampfler



3

ACTUATOR

0815 PLA 8P 14MM

08-S138-0052

Conductix Wampfler



4

Collector

Type 4-pole 800-1000A

100180995

Conductix Wampfler



5

Isolation support

h=50; D=40; M12 24

100180996

Conductix Wampfler



6

Connecting cable

1x2,5-pe 4m RE-WO DI ; 081509-1.5x2.5x42

100181021

Conductix Wampfler



7

Connecting cable

1x2,5-pe 4m RE-WO;

100181024

Conductix Wampfler



8

Trolley brush

811 CSB 7P; 081102-3021

100181026

Conductix Wampfler



9

Trolley brush

0811 1P 55A PE REV GA

081102-3022

Conductix Wampfler



10

COLLECTOR SHOE

0811 40A PE L=48MM

081002-2X2

Conductix Wampfler



11

COLLECTOR SHOE

0811 40A PH L=48MM

081002-1X2

Conductix Wampfler



12

Tappet collector

0811 CSB 7P 20MM ; 081050-20X7

100181033

Conductix Wampfler



13

Connecting cable

1X1,5-PE 2M FE-WO DI; 081109-1.5x1.5x42

100181036

Conductix Wampfler



14

Isolated busbar

815 100A phase 4m ; 081516-4X11

100181039

Conductix Wampfler



15

Isolated busbar

815 100A PROT 4M ; 081516-4X12

100181040

Conductix Wampfler



16

Rail connector - plug -in type

81526-6  support for isolated busbar 815

100181148

Conductix Wampfler



17

Rail Connector

0815 1P SC, 50/14MM

81521

Conductix Wampfler



18

End cap

   815 8p 4-6mm L=66 mm; 81573-08X14X6

100181149

Conductix Wampfler



19

Hanger clamp 0815 8P14 6KT PC

081543-08X14  support for isolated busbar 815

100181144

Conductix Wampfler



20

AIR GAP INSULATION SECTION 0815 1P LT=4

support for isolated busbar 815

081594-2

Conductix Wampfler



21

Expansion joint with 8mm expansion

support for isolated busbar 815

81561

Conductix Wampfler



22

Expansion Unit 0815 8P WC50A GA,L=20MM, (WC=without conductor rail GA=fasteners galvanized)

support for isolated busbar 815

081562-381

Conductix Wampfler



23

Anchor cap

81531

100181154

Conductix Wampfler



24

Expansion unit

0815 8P

100181367

Conductix Wampfler



25

Power feeds

081551-3- support for insolated busbar 815

100181391

Conductix Wampfler



26

Pick up guide

0811 7P 350mm - 081182-20X4X25

100181393

Conductix Wampfler



27

Isolated busbar

811 100A PHASE; 081116-4X21

100181394

Conductix Wampfler



28

Isolated busbar

811 100A PE PHASE; 081116-4x22

081116-4x22

Conductix Wampfler



29

End cap

support for isolated bus bar 0811 4P L=89MM

081174-20X4X0

Conductix Wampfler



30

End cap

support for isolated bus bar 0811 1P L=89MM

081174-20X1X0

Conductix Wampfler



31

Hanger  clamp with steel nut

support for isolated bus bar 0811 3P20 6KT PC

081143-1X3X20

Conductix Wampfler



32

HANGER CLAMP

0811 4P20 6KT PC

081143-1X4X20

Conductix Wampfler



34

End cap for transfer point  0815 1P L=45MM ANG

815

081576-01X14X0

Conductix Wampfler



35

EXPANSION UNIT 0815 1P WC54A GA

081561-311

081561-311

Conductix Wampfler



36

Power feed

811 35A - 081151

100181396

Conductix Wampfler



37

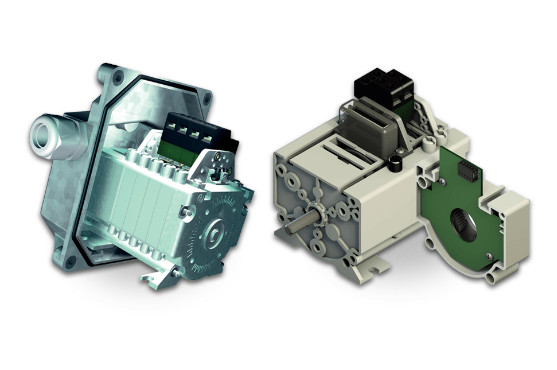

Geared limit switch

Type 51/2B 48BM492
Stromag Geared cam limit switch - series: 51; type: 48 BM − 499
• size: 2B/0; form: B3 aluminium angle foot; protection: IP66 − modular housing − with assembled elastic drive−flange−group F+M

100180416

STROMG
