Software Features
Management IPv4/IPv6, SNMP v1/v2c/v3, LLDP, Port Mirror, DDM, RMON, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SMTP, RARP, Telnet, Syslog, SNMP Inform, Flow Control, Back Pressure Flow Control
Filter 802.1Q VLAN, Port-Based VLAN, GVRP, IGMP v1/v2, GMRP
Redundancy Protocols STP, RSTP, MSTP, Turbo Ring v1/v2, Turbo Chain, Link Aggregation
Security RADIUS, TACACS+, SSL, SSH, Broadcast Storm Protection, Port Lock
Time Management SNTP, NTP Server/Client, IEEE 1588v2 PTP (software-based)
Industrial Protocols EtherNet/IP, Modbus/TCP
MIB MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
• Switch Properties
Priority Queues 4
Max. Number of VLANs 64
VLAN ID Range VID 1 to 4094
IGMP Groups 256
MAC Table Size 8 K
Packet Buffer Size 1 Mbit
• Interface
RJ45 Ports 10/100/1000BaseT(X) auto negotiation speed
Fiber Ports 100/1000BaseSFP slot
Console Port RS-232 (RJ45 connector)
DIP Switches Turbo Ring, Master, Coupler, Reserve
Alarm Contact 2 relay outputs with current carrying capacity of 1 A @ 24 VDC
Digital Inputs 2 inputs with the same ground, but electrically isolated from the electronics.
• +13 to +30 V for state “1”
• -30 to +3 V for state “0”
• Max. input current: 8 mA
• Power Requirements
Input Voltage 12/24/48 VDC, redundant dual inputs
Operating Voltage 9.6 to 69 VDC
Input Current 0.69 A @ 24 VDC
Overload Current Protection Present
Connection 2 removable 6-contact terminal blocks
Reverse Polarity Protection Present
• Physical Characteristics
Housing Metal
IP Rating IP30 protection
Dimensions 87.1 × 135 × 107 mm (3.43 × 5.31 × 4.21 in)
Weight 1510 g (3.33 lb)
Installation DIN-rail mounting, wall mounting (with optional kit)
• Environmental Limits
Operating Temperature Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
• Standards and Certifications
Safety UL 508, EN 60950-1
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: Signal: 10 V
IEC 61000-4-8
Rail Traffic EN 50121-4
Marine DNV, GL, LR, ABS, NK
Shock IEC 60068-2-27
Freefall IEC 60068-2-32



Model No. Description

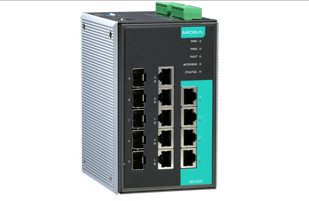

EDS-G509 Industrial full Gigabit Ethernet switch with 4 10/100/1000BaseT(X) ports, and 5 combo 10/100/1000BaseT(X) or 100/1000BaseSFP slot combo ports, 0 to 60°C operating temperature
EDS-G509-T Industrial full Gigabit Ethernet switch with 4 10/100/1000BaseT(X) ports, and 5 combo 10/100/1000BaseT(X) or 100/1000BaseSFP slot combo ports, -40 to 75°C operating temperature
