Software Features
Management IPv4/IPv6, SNMP v1/v2c/v3, LLDP, Port Mirror, DDM, RMON, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SMTP, RARP, Telnet, Syslog, SNMP Inform, Flow Control, Back Pressure Flow Control
Filter 802.1Q VLAN, Port-Based VLAN, GVRP, IGMP v1/v2, GMRP
Redundancy Protocols STP, RSTP, MSTP, Turbo Ring v1/v2, Turbo Chain, Link Aggregation
Security RADIUS, TACACS+, SSL, SSH, Port Lock
Time Management SNTP, NTP Server/Client, IEEE 1588v2 PTP (software-based)
Industrial Protocols EtherNet/IP, Modbus/TCP
MIB MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
• Switch Properties
Priority Queues 4
Max. Number of VLANs 64
VLAN ID Range VID 1 to 4094
IGMP Groups 1024
MAC Table Size 8 K
Packet Buffer Size 1 Mbit
• Interface
RJ45 Ports 10/100BaseT(X) or 10/100/1000BaseT(X) auto negotiation speed
Fiber Ports 100/1000BaseSFP slot
Console Port RS-232 (RJ45 connector)
PoE Pinout V+, V+, V-, V- for pin 1, 2, 3, 6 (Endspan, MDI, Mode A)
DIP Switches Turbo Ring, Master, Coupler, Reserve
Alarm Contact 1 relay output with current carrying capacity of 0.5 A @ 48 VDC
Digital Inputs 1 input with the same ground, but electrically isolated from the electronics.
• +13 to +30 V for state “1”
• -30 to +3 V for state “0”
• Max. input current: 8 mA
• Power Requirements
Input Voltage 48 VDC, redundant dual inputs
Operating Voltage 44 to 57 VDC
Input Current 5.36 A @ 48 VDC
Overload Current Protection Present
Connection 2 removable 2-contact terminal blocks
Reverse Polarity Protection Present
Power Consumption Max. 17.28 W full loading without PDs' consumption
Power Budget Max. 240 W for total PDs’ consumption
Max. 36 W for each PoE port
• Physical Characteristics
Housing Metal
IP Rating IP30 protection
Dimensions 79.2 x 135 x 105 mm (3.12 x 5.31 x 4.13 in)
Weight 1030 g (2.28 lb)
Installation DIN-rail mounting, wall mounting (with optional kit)



Model No. Description

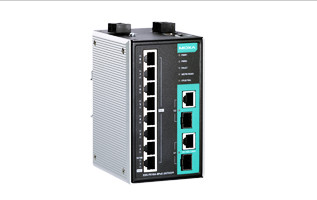

EDS-P510A-8PoE-2GTXSFP Managed Gigabit Ethernet switch with 8 PoE/PoE+ 10/100BaseT(X) ports, and 2 combo 10/100/1000BaseT(X) or 100/1000BaseSFP slots for adding SFP-1G/1FE series Gigabit/fast Ethernet modules, 0 to 60°C operating temperature
EDS-P510A-8PoE-2GTXSFP-T Managed Gigabit Ethernet switch with 8 PoE/PoE+ 10/100BaseT(X) ports, and 2 combo 10/100/1000BaseT(X) or 100/1000BaseSFP slots for adding SFP-1G/1FE series Gigabit/fast Ethernet modules, -40 to 75°C operating temperature
