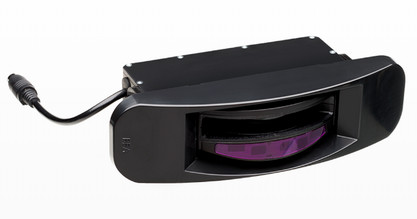

LZR®- FLATSCAN REV-PZ là một cảm biến an toàn laser cao cấp khéo léo với công nghệ thời gian bay cho các cửa quay tự động. 400 điểm đo cung cấp độ chính xác phát hiện rất cao và không bị ảnh hưởng bởi ánh sáng.

Technology:

LASER scanner, time-of-flight measurement



Detection mode:

Presence



Max. detection range:

4m ( diagonal ) with reflectivity of 5%
5m ( diagonal ) with reflectivity of 8%



Opening Angle:

90°



Angula resolution:

0.23° ( 400 spots within 90°)



Testbody:

700 mm × 300 mm × 200 mm (testbody CA) according to EN 16005 & DIN 18650, <4m; 50mm cylinder CB testbody according DIN18650 <3.5m height



Emission characteristics:

Wavelength 905 nm; max. output pulse power 25 W (Class 1)



IR LASER:

Wavelength 650 nm; max. output CW power 3 mW (CLASS 3R) visible spots



Supply voltage:

12-24V DC ± 15%



Power consumption:

≤ 2.3 W



Response time:

max. 90 ms



Output:

1 optocoupler ( galvanic isolation - polarity free )
Max. switching voltage: 42V AC/ 60V DC
Max. switching current: 100 mA
1 Relay ( free of potential change-over contact )
Max. contact voltage: 60V AC / 125V DC
Max. contact current: 1.0A ( resistive )
Max. switching power: 30W ( DC ) / 60VA ( AC )



LED-signals:

1 bi-colored LED: detection/ output status



Dimensions:

178 mm (L) × 85 mm (H) × 53 mm (D)



Material-Colour:

PC/ABS - Black



Tilt angles:

0° ~ +5°



Protection degree:

IP54 (EN 60529)



Temperature range:

-30°C to +60°C if powered



Humidity:

0-95% non-condensing



Vibrations:

< 2 G



Norm conformity:

EN 12978; EN ISO 13849-1 Pl “d”/ CAT2; IEC 60825-1; EN 60950-1; EN 61000-6-2; EN
61000-6-3; EN 62061 SIL 2; DIN 18650-1 Chapter 5.7.4 ( testbody CA & testbody CB );
EN16005 Chapter 4.6.8 ( testbody CA )
Specifications
