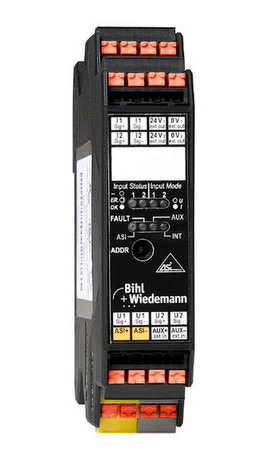

Type IP20, 22,5 mm x 92 mm, 4 x COMBICON
Housing 4 x COMBICON
Protection rating IP20
Primary application -
Flat design, installation in cable duct possible -
Inputs digital -
Inputs Safety, SIL 3, Cat. 4 -
Outputs digital -
Inputs analog 2 x 4 ... 20 mA/2 x 0 … 10 V
Outputs analog -
Safety signal inputs -
M8/M12 wiring -
Input voltage (sensor supply) selectable, out of AS-i or out of AUX, Default out of AS-i
Output voltage (actuator supply) -
Connection clamps
Round cable -
AS-i connection clamps
AS-i address 1 Single Slave
